RHEINZINK reveal panel systems

Benefits of RHEINZINK reveal panels

  • Modern panel system for vertical and horizontal facade configuration Custom and perfectly matching production for every property Quick and easy assembly with tongue and groove principle

It is worth taking a look behind the facade

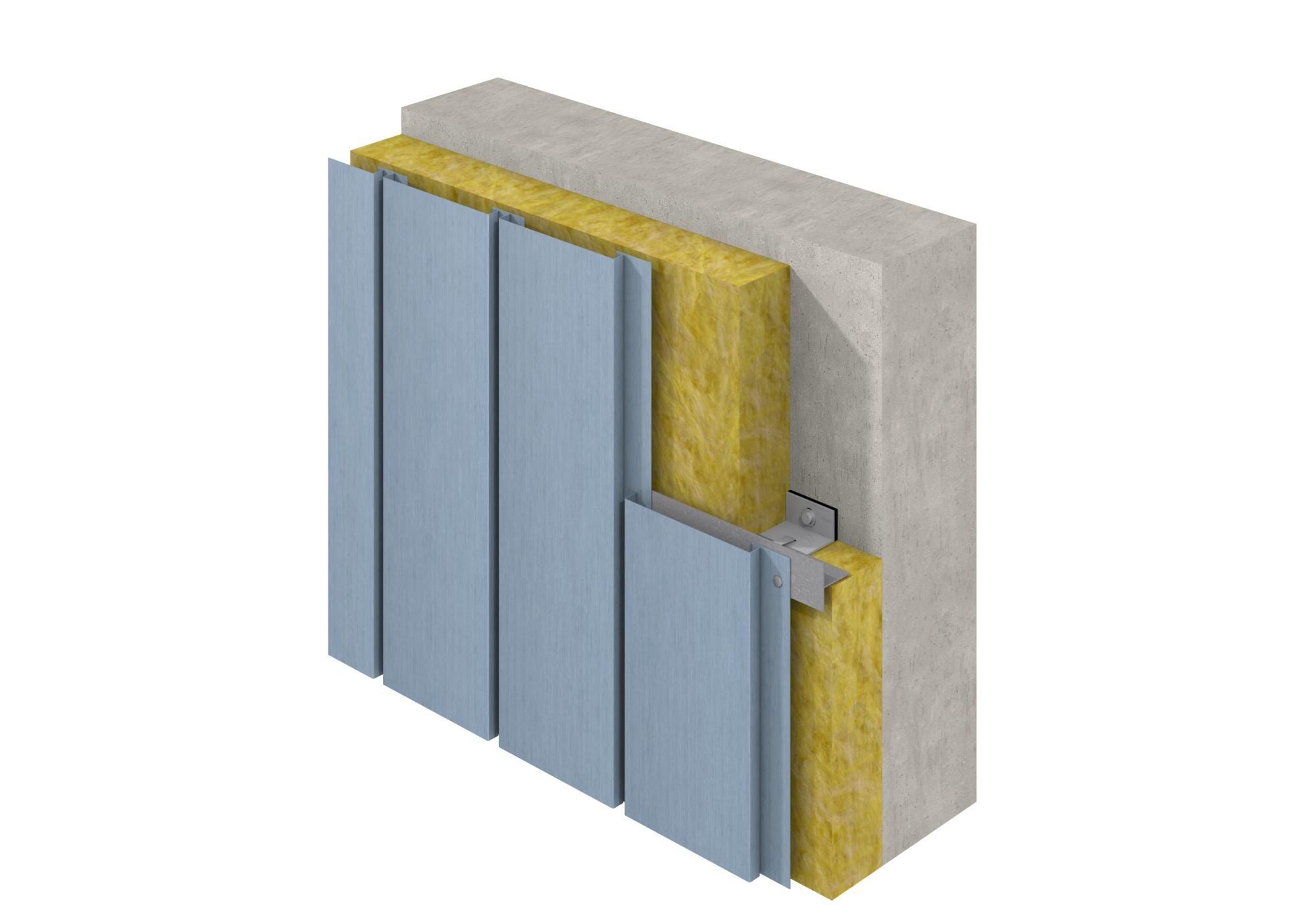

While a building's facade makes a statement, even the most gorgeous facade would be worthless if it didn’t protect the building it encloses. Our SF 25 reveal panels are a prime example of good looks and long-term protection against the elements. Facades constructed as a ventilated curtain wall can have a particularly dramatic and positive effect.

Because cost is always a consideration, our history and extensive experience in facade production allows us to create attractive, protective and durable facades and zinc metal wall panels that are also cost effective to designers, planners and builders.

Our SF 25 zinc metal wall panels can be installed quickly and easily and feature fasteners that are invisible.

RHEINZINK reveal panel program

Construction profilesInside corner panelOutside corner panelSplice plateSF 25 reveal panel

A simple installation technique is not the only important factor. Our system solution also includes matching accessory parts. RHEINZINK construction profiles are available to ensure that all visible building sections match the overall image. We supply matching base, butt and jamb profiles and window sill flashing for all system solutions. Certain profiles are also available in partially perforated forms to provide the required ventilation at all times. Our profiles are available in lengths of 3000 mm or 4000 mm as standard. Special lengths can be produced on request.

Features of RHEINZINK reveal panels

The RHEINZINK SF 25 reveal panels are designed to be installed vertically, horizontally or diagonally and are available with variable center distances and variable joint widths:

  • The reveal panels centre distances are between 200 mm and 333 mm
  • The joint width between the individual reveal panels is between 0 mm and 30 mm
  • The maximum length of the individual reveal panels is 4,000 mm

Reveal panels alone offer great freedom of design due to the different possible installation directions. Additionally, SF 25 reveal panels can be combined with H 25 horizontal panels, giving planners, architects and professional specialists even greater freedom of design and the chance to thrill clients with dramatic creations.



RHEINZINK reveal panel surface variants

Reveal panel planning and application

System description

  • Vertical and diagonal installation
  • Horizontal installation up to 250 mm construction width
  • Variable joint pattern
  • Assembled from top to bottom
  • Concealed attachment

RHEINZINK panels are ideal for use on facades with high aesthetic requirements, such as commercial/office buildings or public buildings with a modern, technological appearance. RHEINZINK panels can also be employed to clad small surfaces such as dormers, fascias or gables.

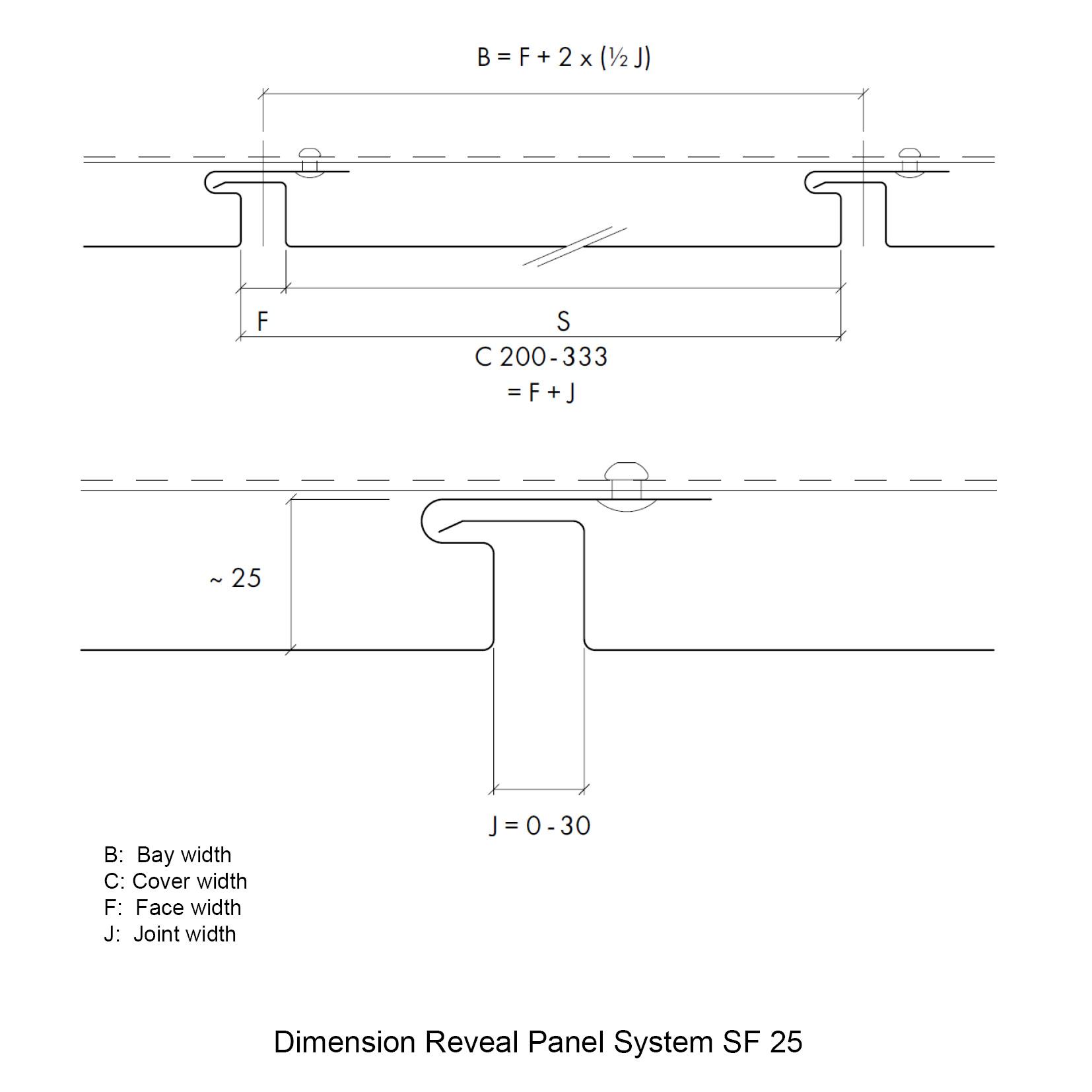

Reveal panels have an installation depth of 25 mm and open up a variety of design options as they can be installed vertically, horizontally and diagonally. The variable width of the shadow gap (0 mm to 30 mm) adds further individual configuration options.

Dimensions and metal thickness

  • Construction width 200 mm - 333 mm when installed vertically
  • Construction width 200 mm - 250 mm when installed horizontally
  • Metal thickness 1.0 mm/1.2 mm recommended for construction widths ≥ 250 mm
  • Standard lengths 3000 mm and 4000 mm
  • Max. panel length 4000 mm

We generally recommend stiffening the ends of the panels using end plates. These are required to guarantee a perfect surface, particularly for larger construction widths from 250 mm upwards. The end plates also prevent side gaps in the panels e.g. around lintels.

When directly attached, length variations of the panels are compensated by limiting the facade panel size to max. 4000 mm and by aligning the substructure. This applies to applications using multi-part, metal substructures.

The resulting horizontal or vertical joints can be given different designs using backing splice plates or pilaster strip profiles, for instance.

Customised forms

  • Concave and convex rounded panels

  • Face perforation

Reveal panels can also be used to cover buildings with convex or concave rounded building forms. The radius, construction width and length of the panels are critical factors for the feasibility of rounded panels.

Panel faces can be fully or partially perforated, either as a design element or for ventilation purposes, e.g. as ventilation or aeration elements below roof overhangs or for ventilated roof structures. RHEINZINK Service fabrication offers various perforation patterns for this purpose.

Questions?  Contact the RHEINZINK Technical Department for your area.



Attachment

RHEINZINK reveal panels with tongue/groove systems are invisibly attached to the metal substructure in the groove areas using rivets or self-drilling screws. The required spacing of the substructure depends, amongst other things, on the wind load, the type of support structure, the structural system and the load bearing capacity of the cladding and requires appropriate structural analysis.
